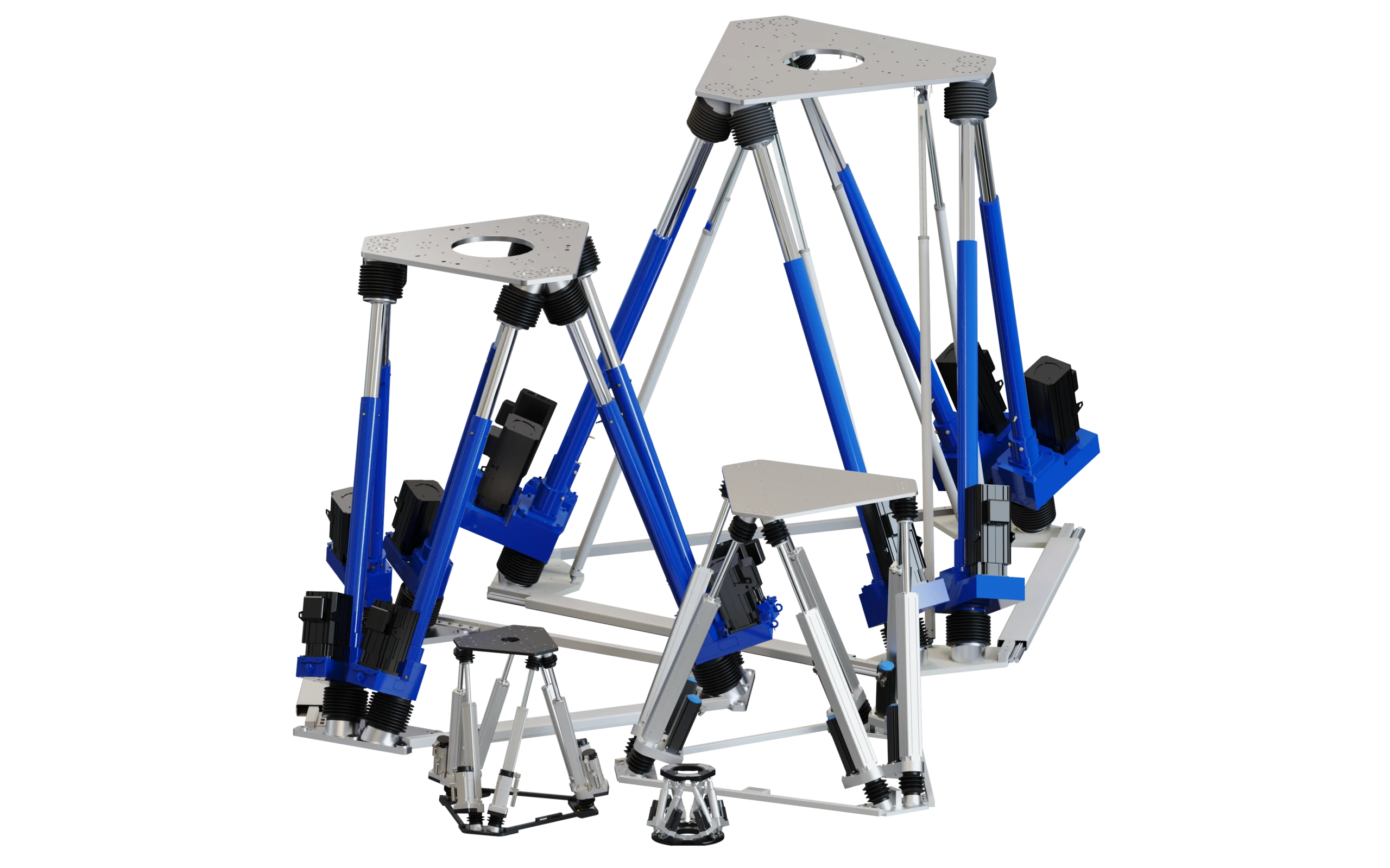

discover ALL OUR motion HEXAPODS
NOTUS
Mid-sized motion hexapod
Dynamic and robust mid-sized motion hexapod, ideal for research laboratories, and applications like naval, optronics, aeronautics, chemical, automotive and medical fields.
Load: 100 kg or 200 kg
Linear travel: ± 250 mm
Angular travel: ± 25
Speed: ± 1,200 mm/s
Size in centered position: 1.1 m
Mistral
Large hexapod motion simulator
Large hexapod motion simulator for reproduce trajectories of land, naval, or air vehicles. Testing sensors, SATCOM antennas, electro-optics systems…
Load: 500 kg or 1,000 kg
Linear travel: ± 465 mm
Angular travel: ± 30
Speed: ± 1,000 mm/s
Centered position size: 1.4 m or 1.8 m
SIROCCO
Hexapod motion simulator with high load capacity
With a load capacity of up to 2 tonnes and an acceleration of up to 6000 mm/s², this hexapod can be used to study the movement of liquids, set in motion models or simulate a vehicle.
Load: 2,000 kg
Linear travel: ± 600 mm
Angular travel: ± 40
Speed: ± 2,500 mm/s
Size in centered position: 2.8 m

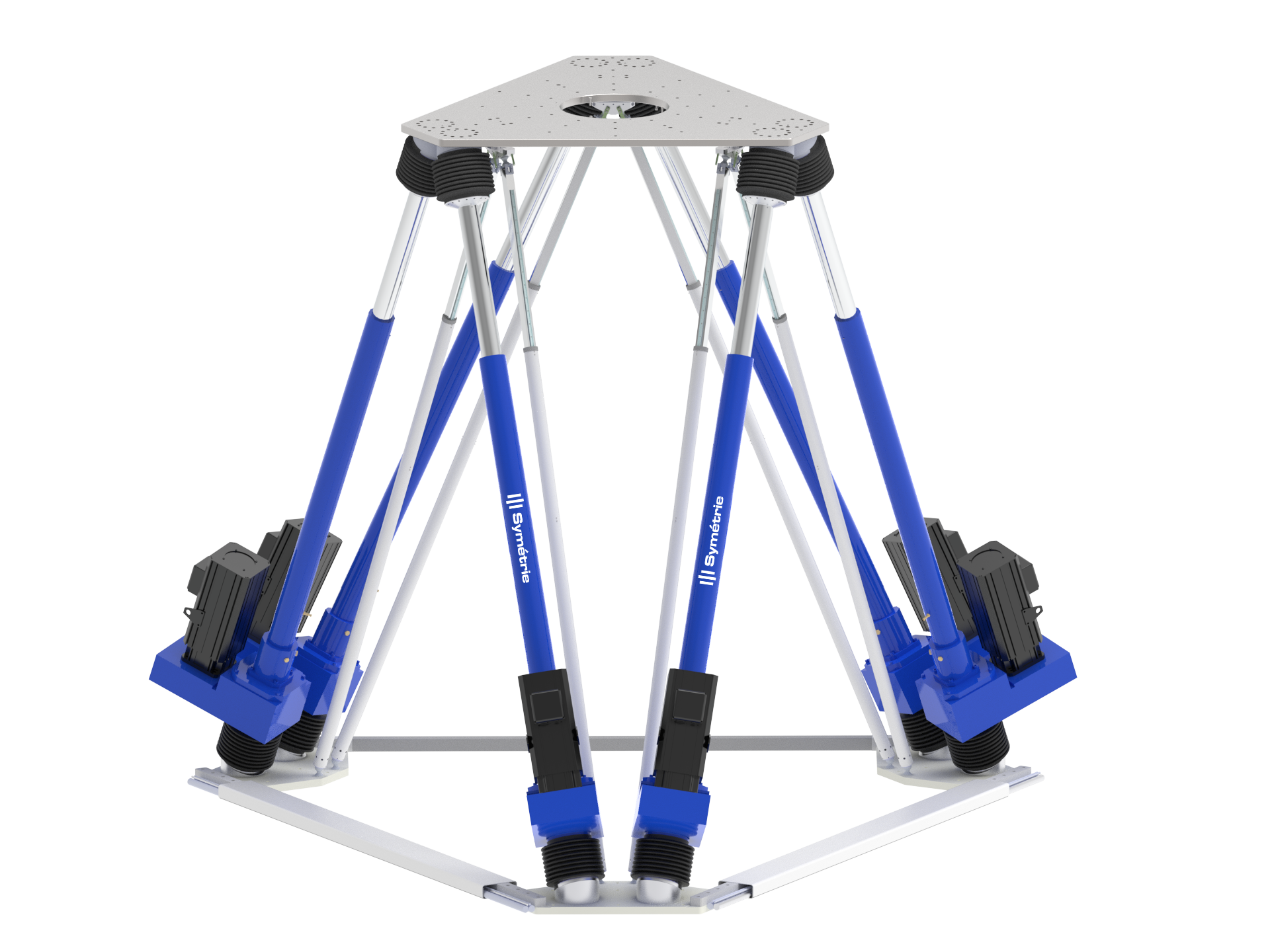

AQUILON
High travel range hexapod with high load capacity
With 6 tonnes of load capacity, this hexapod can also be combined with a measuring hexapod to monitor the movements of the actuators and the moving platform.
Load: 6,000 kg
Linear travel: ± 800 mm
Angular travel: ± 40
Speed: ± 2,000 mm/s
Size in centered position: 3.2 m
What is a motion hexapod?
A motion simulation hexapod is a precision robot consisting of six linear actuators acting in synchrony to position the moving table in 6 degrees of freedom. Its amplitude can reach several tens of centimeters and up to 40°, while supporting loads of several tons. Unlike conventional serial architectures, the hexapod is based on a parallel structure, giving it high rigidity, stability and repeatability in six degrees of freedom: 3 translations Tx, Ty, Tz and 3 rotations Rx, Ry, Rz. Thanks to its six synchronized actuators, this system reproduces complex trajectories and realistic loads with great fidelity.
Motion hexapods are designed to simulate dynamic phenomena such as vibrations, accelerations, jolts or navigation-type movements, which are found in applications such as flight simulators, naval simulators, on-board tests or stability tests.
Why choose a SYMETRIE motion hexapod?
SYMÉTRIE has been designing and manufacturing hexapods for over 25 years, with a level of excellence recognized in the most technical sectors. Our team of expert engineers in mechanics, power electronics, real-time servo control and software development designs tailor-made solutions for the most critical dynamic applications.
Each hexapod is the result of optimized design, rigorous manufacturing and stringent quality control. This approach guarantees our customers tailor-made, reliable and robust solutions, adapted to the most complex environments.

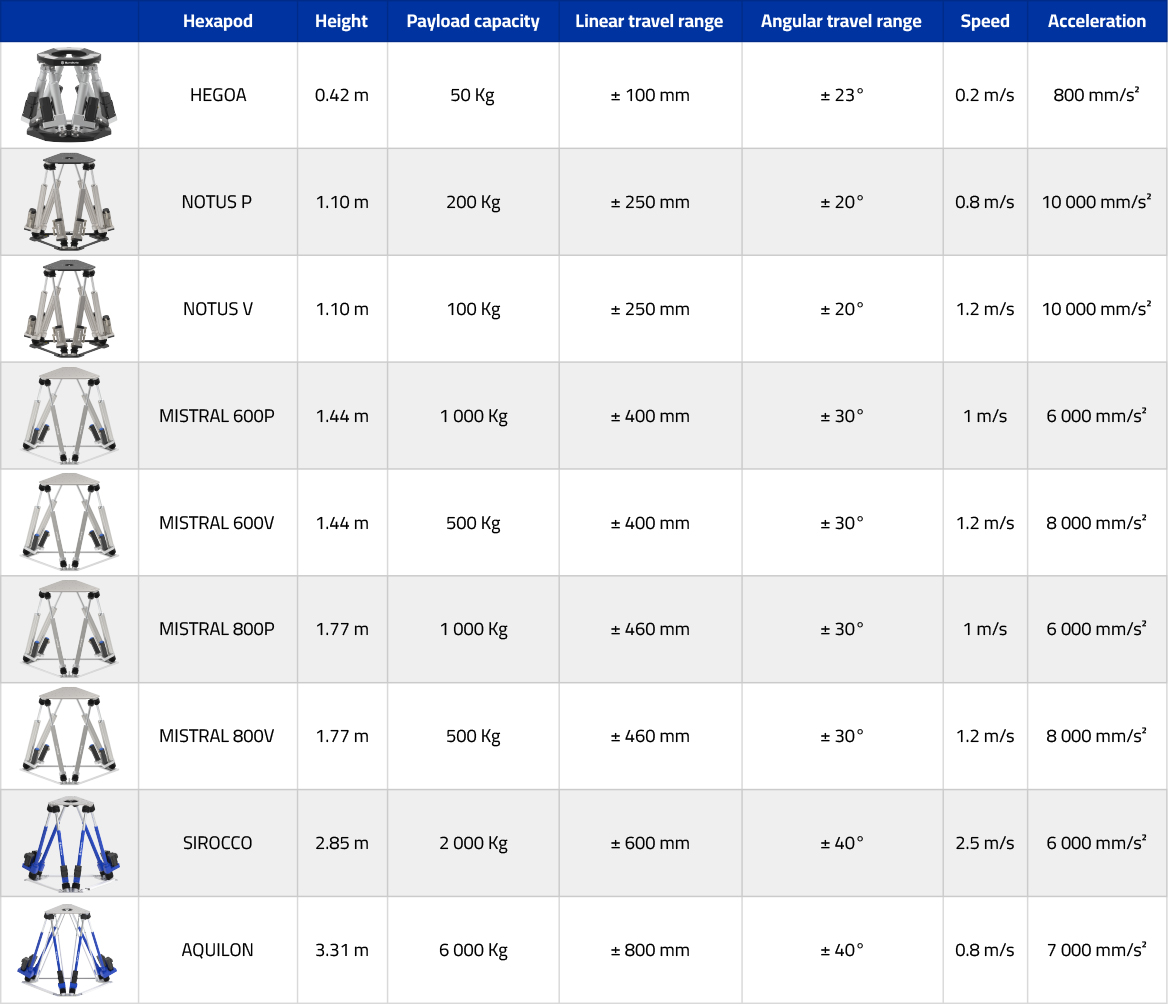

Comparison table of our motion hexapods
