Positioning hexapod
Our precision positioning hexapods
Expertise recognized worldwide
discover ALL OUR HEXAPOD positioners
What is a hexapod positioner?
A positioning hexapod is a precision robot made up of six linear actuators acting synchronously to position the movable plate in 6 degrees of freedom. Accuracy can reach a few tens of nanometers and/or nanoradians. In contrast to conventional serial architectures, the hexapod is based on a parallel structure, giving it high rigidity, stability and repeatability in six degrees of freedom: 3 translations Tx, Ty, Tz and 3 rotations Rx, Ry, Rz.
This technology, derived from mechatronics, is particularly well suited to applications requiring fine, complex positioning along several axes positioned in any frame of reference. In this way, an object placed on the moving table can be positioned, adjusted and assembled simply and easily.

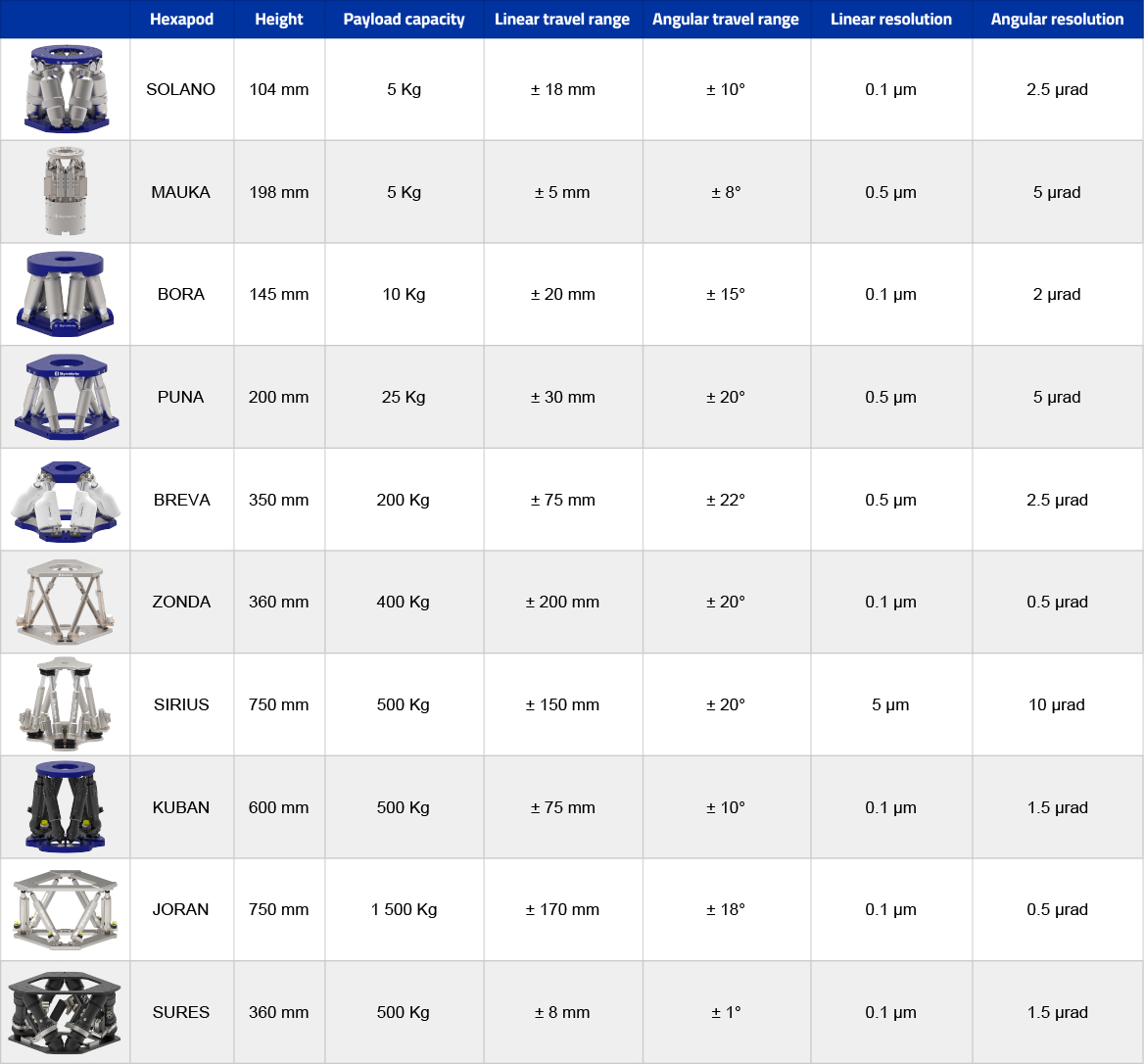

Hexapod comparative table
| Hexapod | Height | Payload capacity | Linear travel range | Angular travel range | Linear resolution | Angular resolution | |
 |

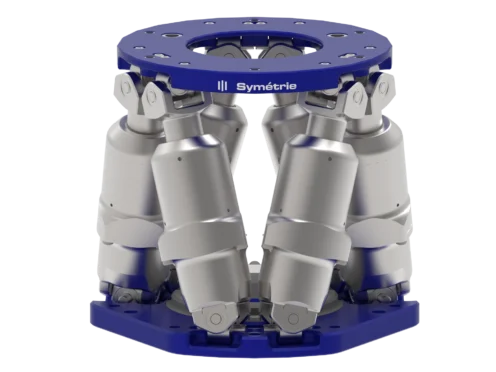

SOLANO | 104 mm | 5 Kg | ± 18 mm | ± 10° | 0.1 µm | 2.5 µrad |
 |

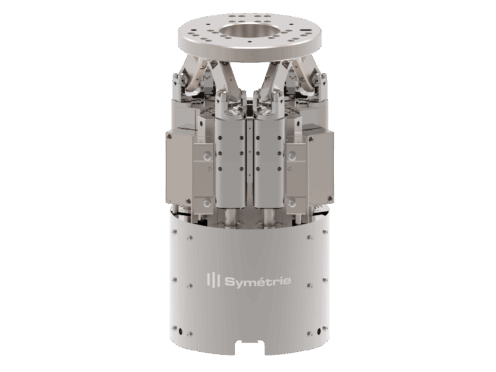

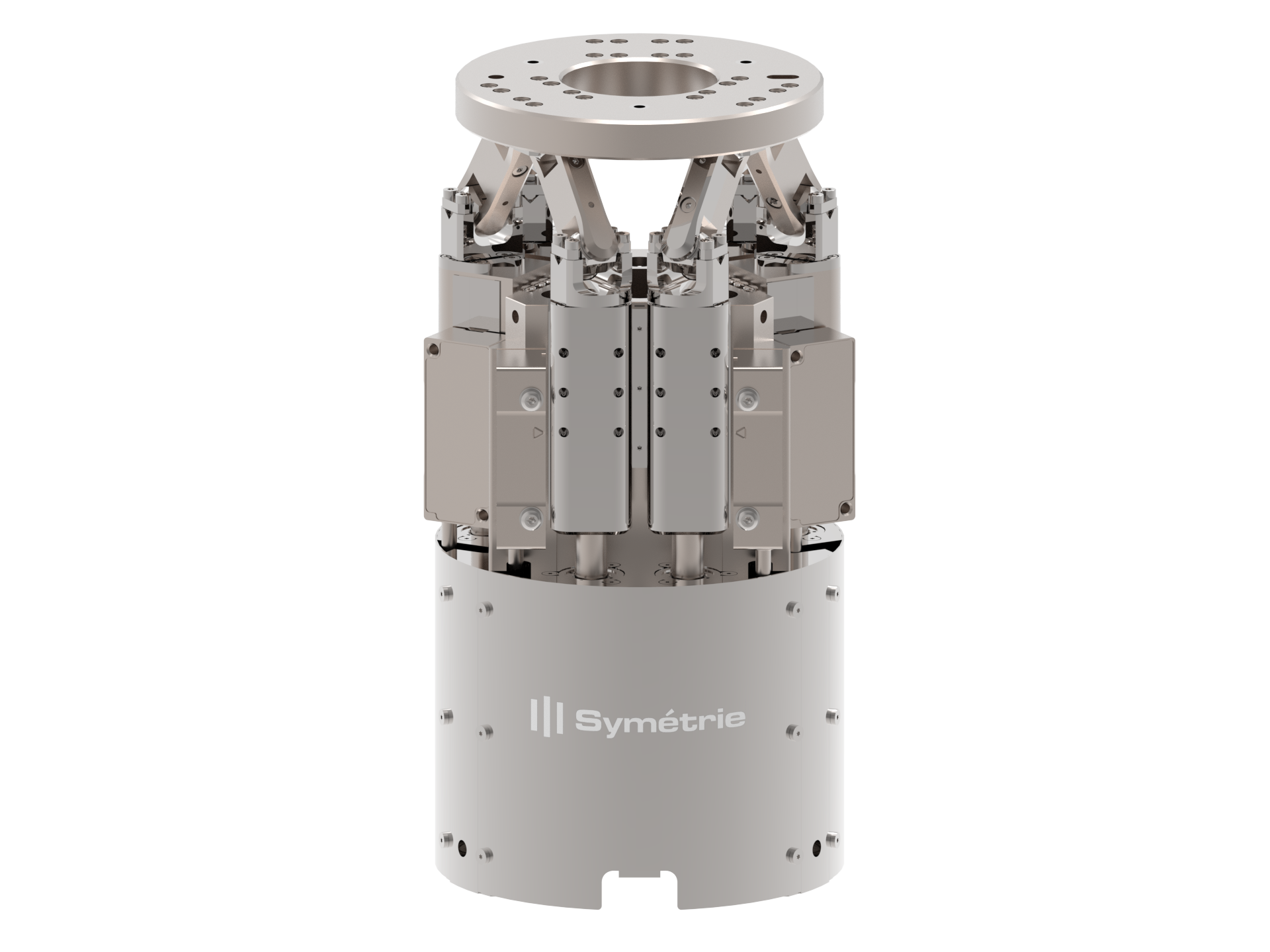

MAUKA | 198 mm | 5 Kg | ± 5 mm | ± 8° | 0.5 µm | 5 µrad |
 |

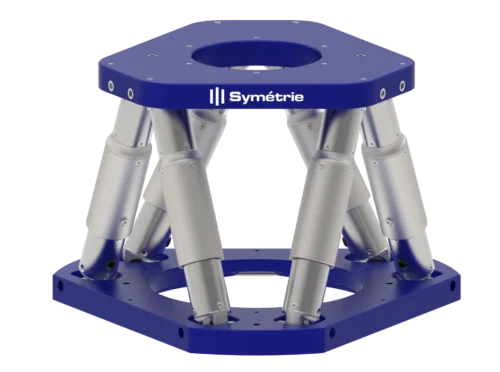

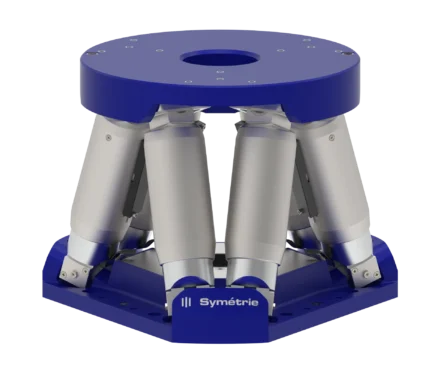

BORA | 145 mm | 10 Kg | ± 20 mm | ± 15° | 0.1 µm | 2 µrad |
 |
PUNA | 200 mm | 25 Kg | ± 30 mm | ± 20° | 0.5 µm | 5 µrad |
 |

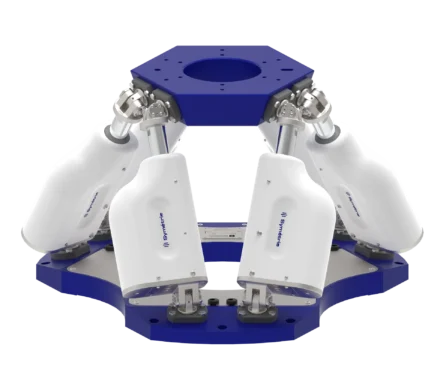

BREVA | 350 mm | 200 Kg | ± 75 mm | ± 22° | 0.5 µm | 2.5 µrad |
 |

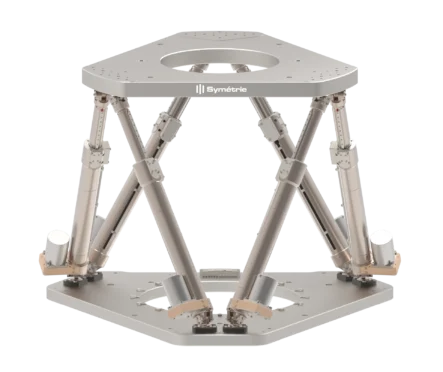

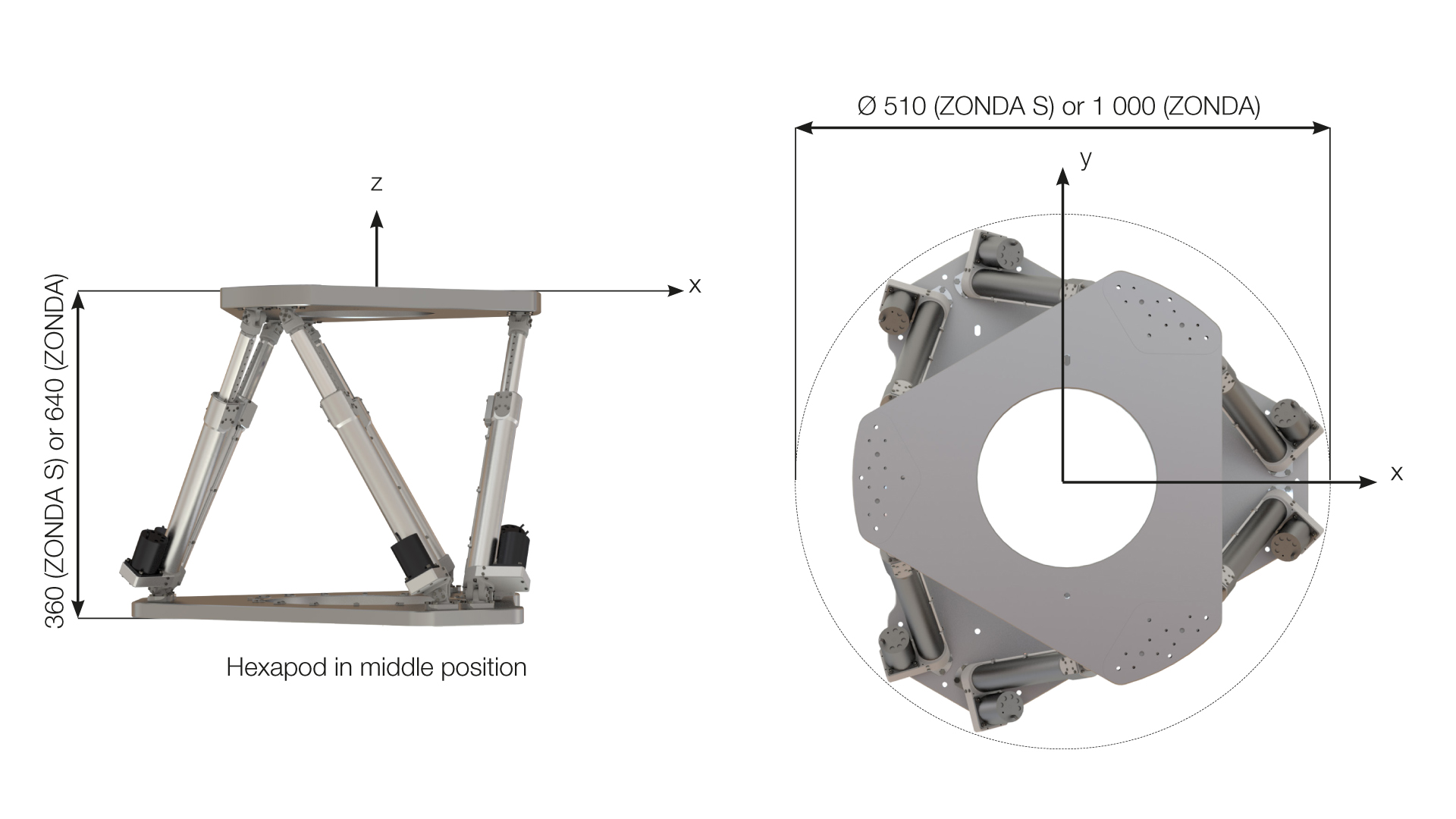

ZONDA | 360 mm | 400 Kg | ± 200 mm | ± 20° | 0.1 µm | 0.5 µrad |
 |

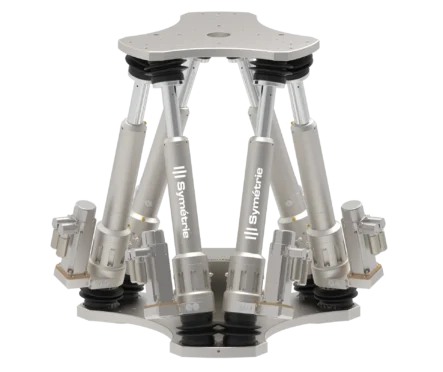

SIRIUS | 750 mm | 500 Kg | ± 150 mm | ± 20° | 5 µm | 10 µrad |
 |
KUBAN | 600 mm | 500 Kg | ± 75 mm | ± 10° | 0.1 µm | 1.5 µrad |
 |

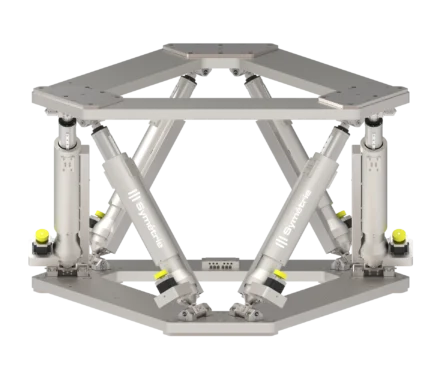

JORAN | 750 mm | 1 500 Kg | ± 170 mm | ± 18° | 0.1 µm | 0.5 µrad |
 |
SURES | 360 | 500 Kg | ± 8 mm | ± 1° | 0.1 µm | 1.5 µrad |
* Specifications may vary depending on the configuration selected and the operating environment.
Symétrie, hexapod expert for 25 years
Our precision positioning experts are here to answer your technical questions and help you choose the solution best suited to your application.
FAQ
What kinds of movements can the Symétrie hexapod perform?
The hexapod can perform combined movements across its six degrees of freedom: three translations (X, Y, Z) and three rotations (Rx, Ry, Rz). This flexibility allows for complex adjustments that would be impossible with conventional guidance systems.
What is the accuracy or resolution of the movements?
Our hexapods achieve resolutions of around 0.1 µm for linear motion and a few microradians for rotational motion. Repeatability is one of our key strengths, ensuring the accuracy of every positioning operation.
What materials are used to make the hexapod?
We use high-performance materials such as anodised aerospace-grade aluminium, stainless steel and components specifically designed for demanding environments (vacuum, cleanroom, non-magnetic).
Is it compatible with different software or control systems?
Absolutely. We provide function libraries (SDKs) compatible with LabVIEW, C++ and Python, as well as specific interfaces for research environments such as EPICS and TANGO.
Is the hexapod safe for use in laboratories or in industry?
Safety and reliability are at the heart of our design. The software features configurable travel limits, virtual collision detection and hardware safety features to protect your equipment and samples.
