Breva

HIGH ACCURACY ADJUSTMENT HEXAPOD

BREVA hexapod has been specially designed to provide high angular accuracy. It allows angular positioning of objects like samples, probes or sensors with a resolution of 0.5 µm or 2.5 µrad.

It comes in 3 different versions depending on its motorization: DC, stepper or brushless motors.

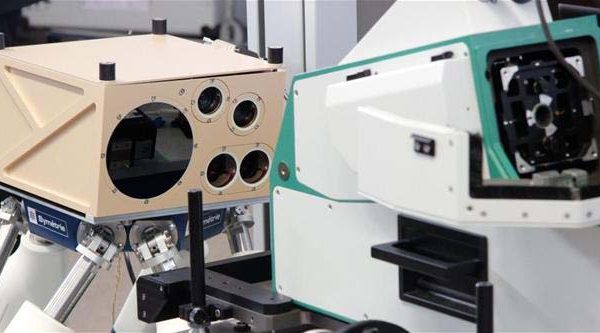

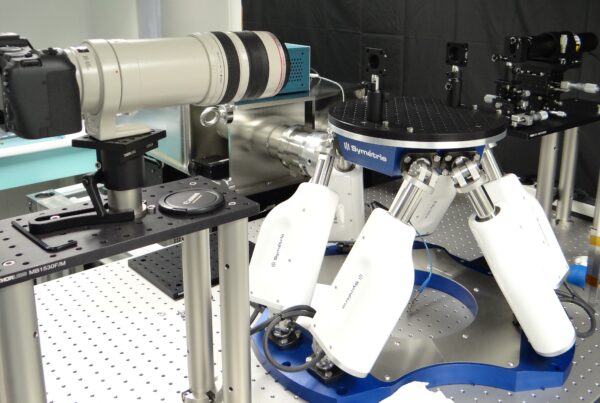

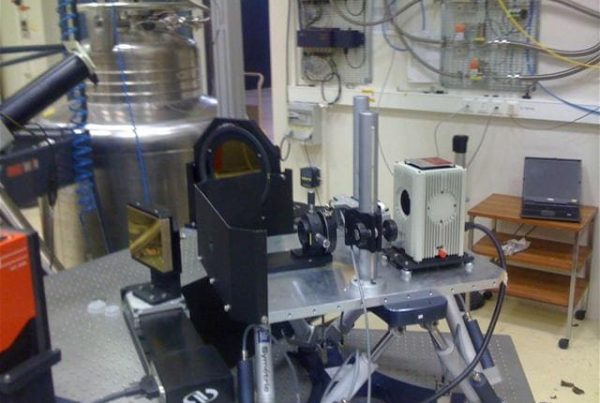

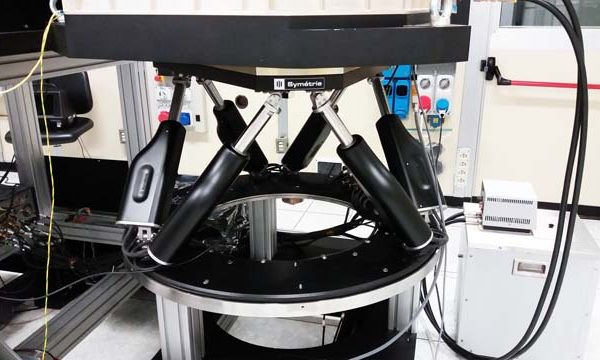

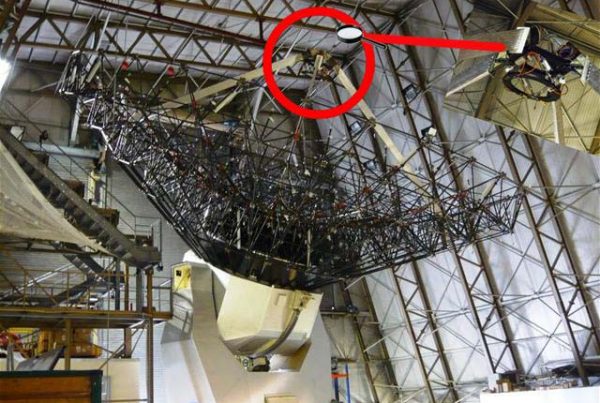

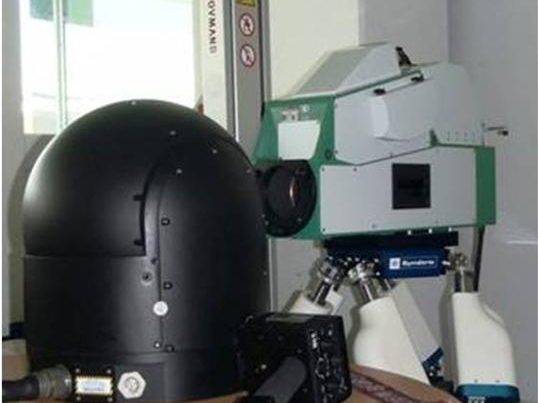

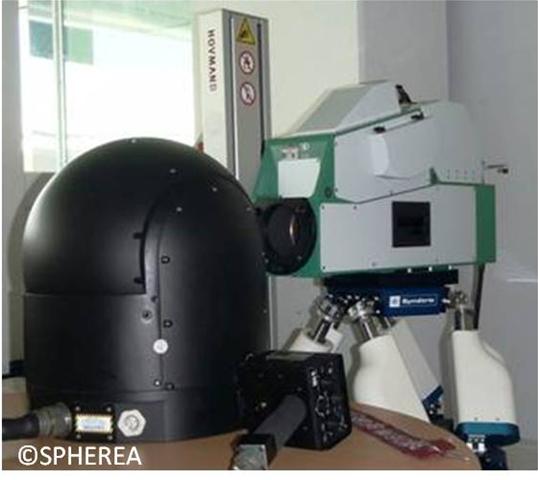

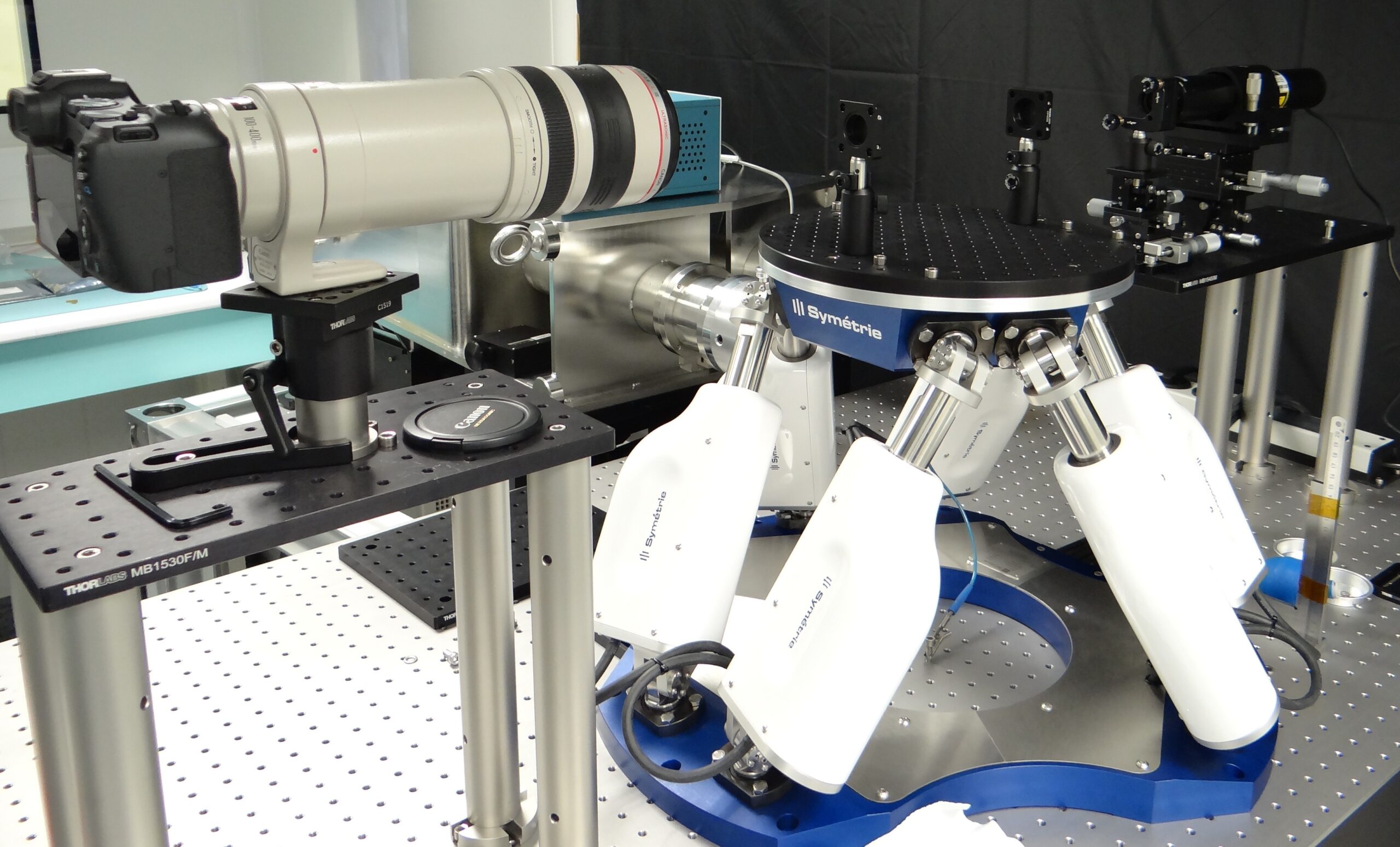

BREVA hexapod can be used in any orientation: vertical, horizontal, upside down…

Linear travel range

± 75 mm

RESOLUTION

0.5 µm

Repeatability

± 0.5 µm / ± 2.5 µrad

PAYLOAD

25 kg or 200 kg

Motion and positioning

 BREVA DCBREVA STBREVA BL
 for lighter payloadfor higher payloadfor higher speed and payload
Travel range Tx, Ty (mm)± 75± 75± 75
Travel range Tz (mm)± 50± 50± 50
Travel range Rx, Ry (deg)± 20± 20± 20
Travel range Rz (deg)± 22± 22± 22
Resolution Tx, Ty, Tz (µm)0.50.50.5
Resolution Rx, Ry, Rz (µrad)2.52.52.5
Repeatability Tx, Ty, Tz (µm)± 0.5± 0.5± 0.5
Repeatability Rx, Ry, Rz (µrad)± 2.5± 2.5± 2.5
Speed (mm/s; deg/s)8; 2.50.8; 0.253; 1

Mechanical properties

 BREVA DCBREVA STBREVA BL
Stiffness X, Y (N/µm)5
Stiffness Z (N/µm)32
Payload capacity (kg) (vertical orientation / horizontal orientation)25 / 10200 / 80200 / 80
Motor typeDC motor, gearheadStepper motor, gearheadBrushless motor, gearhead

Miscellaneous

 BREVA DCBREVA STBREVA BL
Operating temperature range (°C)0 to + 500 to + 500 to + 50
MaterialsAluminum, steel, stainless steel, plastic

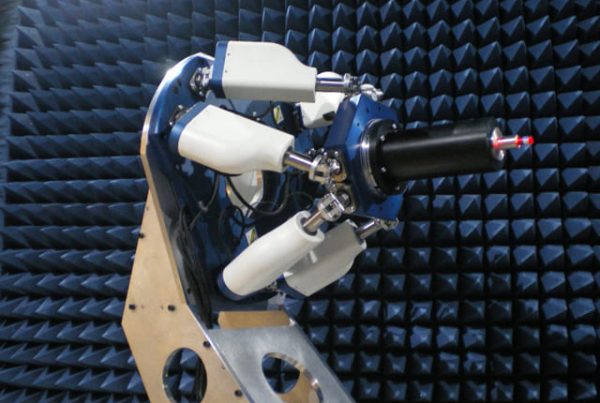

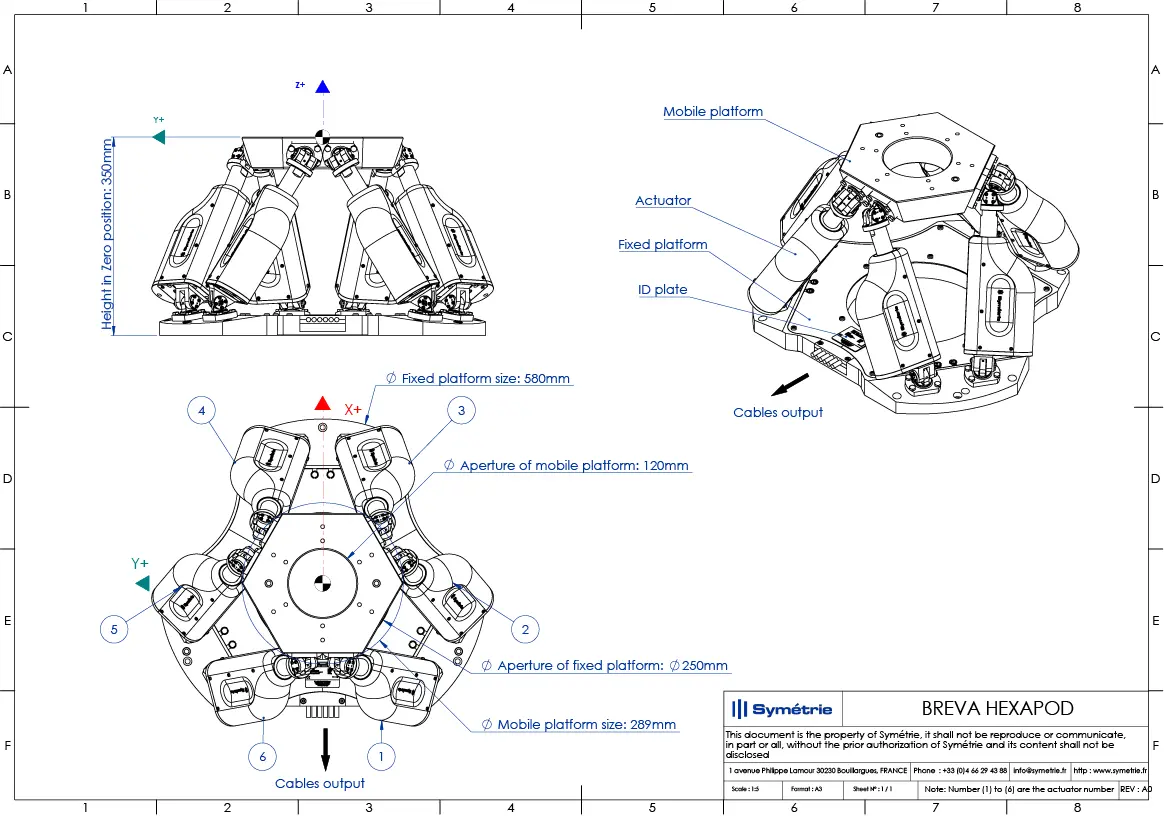

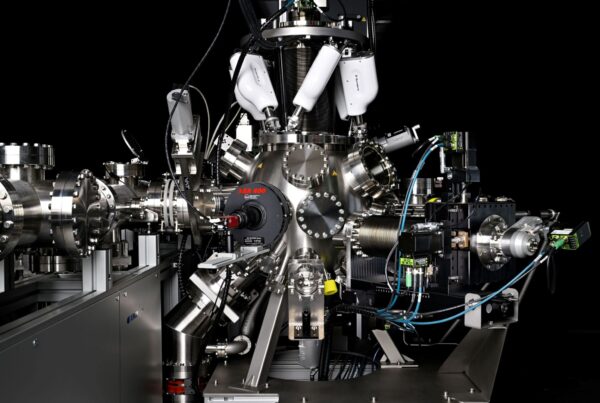

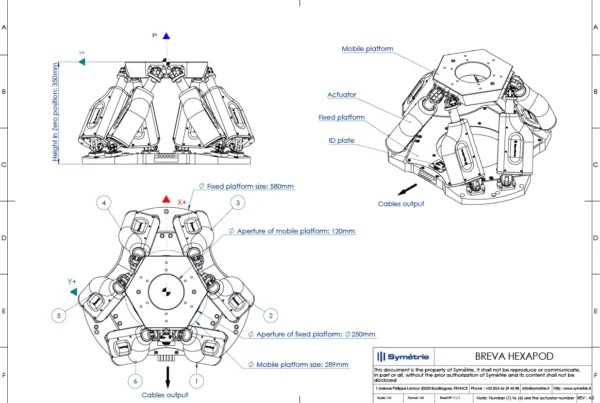

Mobile platform size (mm)Ø 289Ø 289Ø 289
Mobile platform central aperture (mm)Ø 120Ø 120Ø 120
Fixed platform size (mm)Ø 580Ø 580Ø 580
Fixed platform central aperture (mm)Ø 200Ø 200Ø 200
Height in middle position (mm)350350350
Footprint (mm)Ø 606Ø 606Ø 606
Mass (kg)323636
Cable length (m)3
Options

Absolute encoders

Clean room compatibility

Vacuum compatibility

Customized platform design

Controller

 BREVA DCBREVA STBREVA BL
Controller typeALPHA+
InterfaceEthernet
Power supply110-240 VAC / 50-60 Hz
Absolute encoders
Clean room compatibility
Vacuum compatibility
Customized platform design
