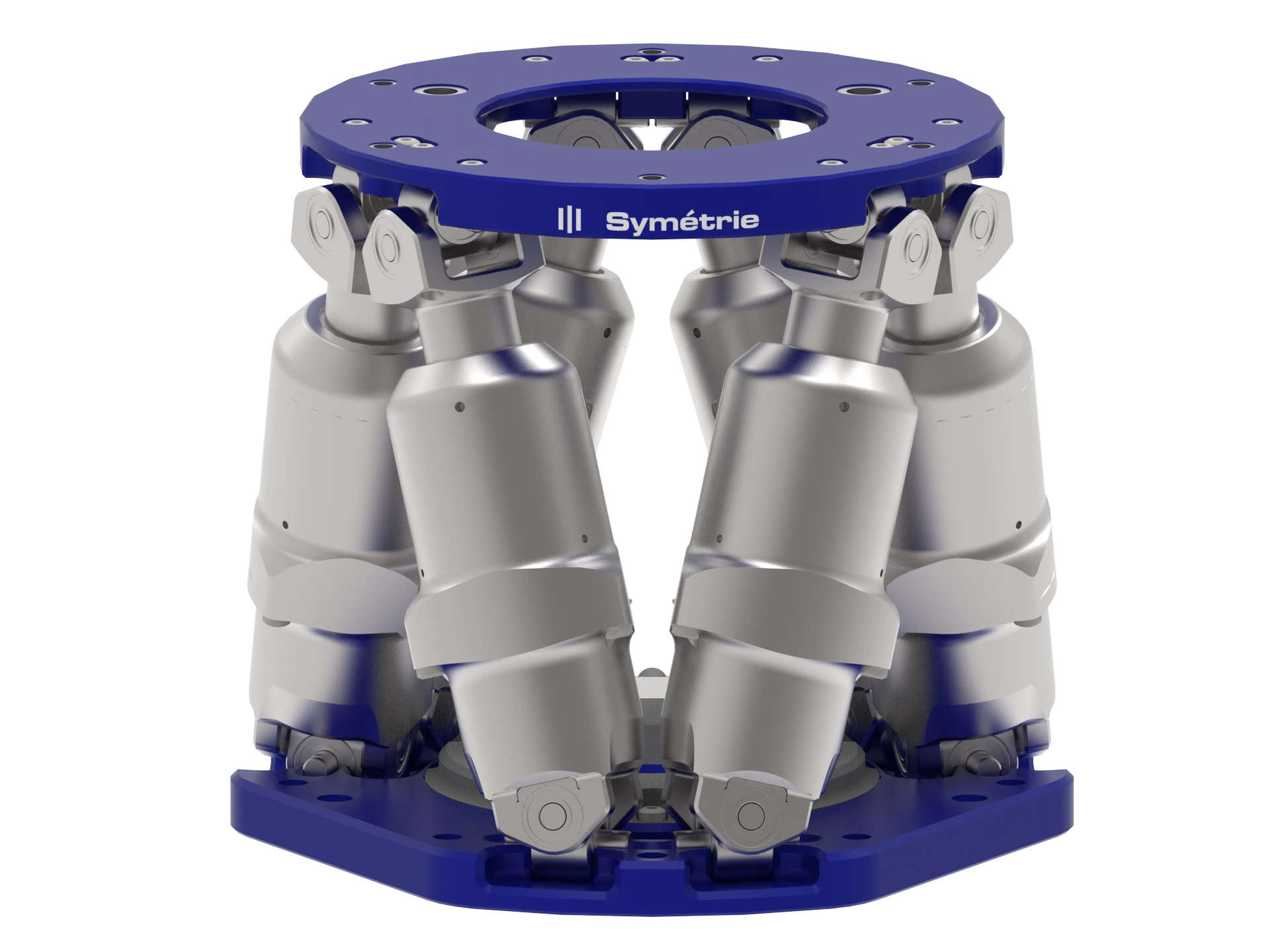

Solano

MINI HIGH PRECISION POSITIONING HEXAPOD

SOLANO is an ultra compact hexapod designed for positioning and calibration of elements requiring a small dimension with a resolution down to 0.08 µm.

SOLANO hexapod meets increasing requirement from demanding areas in terms of size, resolution, precision and stability.
Its dimensions allows an integration into a narrow environment, thanks to its small size, 104 mm height, and its reduced diameter of 120 mm.

SOLANO can be used in the two orientations: vertical and horizontal.

RANGE

± 18 mm / ± 10 °

RESOLUTION

0.1 µm / 2.5 µrad

REPEATABILITY

± 0.25 µm

PAYLOAD

5 kg

Motion and positioning

Travel range Tx, Ty (mm)± 20
Travel range Tz (mm)± 10
Travel range Rx, Ry (deg)± 10
Travel range Rz (deg)± 15
Resolution Tx, Ty, Tz (µm)0.1
Resolution Rx, Ry, Rz (µrad)2
Repeatability Tx, Ty, Tz (µm)± 0.4
Repeatability Rx, Ry, Rz (µrad)± 3.2
Speed Tx, Ty (mm/s)2
Speed Tz (mm/s)1
Speed Rx, Ry (deg/s)1
Speed Rz (deg/s)2

Mechanical properties

Stiffness X, Y (N/µm)1
Stiffness Z (N/µm)10
Payload capacity (kg) (vertical orientation / horizontal orientation)10 / 5
Motor typeDC motor, gearhead

Miscellaneous

Operating temperature range (°C)0 to + 50
MaterialsAluminum, steel, stainless steel
Mobile platform size (mm)Ø 160
Mobile platform central aperture (mm)Ø 43
Fixed platform size (mm)Ø 210
Fixed platform central aperture (mm)Ø 36
Height in middle position (mm)145
Footprint (mm)Ø 210
Mass (kg)4.3
Cable length (m)3

Controller

Controller typeNAOS or ALPHA+ if cable length > 10 m or temperature < 0°C
InterfaceEthernet
Power supply110-240 VAC / 50-60 Hz
Clean room compatibility
Telecommande
Hand-held control unit
Customizable platform design
