Hexapod

SOLANO
Mini Hexapod

Miniature Stewart platform designed for positioning and adjusting compact components with a resolution of ≤ 50 nanometers.

Resolution: 50 nm
Linear Travel Range: ± 18 mm
Angular Travel Range: ± 21°
Height in middle position: 104 mm
Payload: 5 kg

MAUKA
Compact Hexapod

Compact Hexapod type Hexaglid designed to position loads of up to 5 kg with sub-micron resolution.

Resolution: 0.5 µm
Linear Travel Range: ± 10 mm
Angular Travel Range: ± 8°
Height in middle position: 198 mm
Payload: 5 kg

BORA
Small Hexapod

A small high-precision hexapod designed for the positioning and adjustment of components with a resolution of 0.1 µm.

Resolution: 0.1 µm
Linear Travel Range: ± 20 mm
Angular Travel Range: ± 15°
Height in middle position: 145 mm
Payload: 5 kg

PUNA
Hexapod affordable and simple

An affordable and simple 6DoF platform designed for precision positioning in research on a budget.

Resolution: 0.5 µm
Linear Travel Range: ± 30 mm
Angular Travel Range: ± 20°
Height in middle position: 200 mm
Payload: 25 kg

BREVA
Mid-sized hexapod

Mid-sized precision hexapod designed for positioning loads weighing up to 200 kg with a resolution of 0.5 µm.

Resolution: 0.5 µm
Linear Travel Range: ± 75 mm
Angular Travel Range: ± 22°
Height in middle position: 350 mm
Payload: 200 kg

ZONDA
Micro-positioning hexapod

High-performance micro-positioning hexapod for applications requiring high precision, high load capacity and long strokes.

Resolution: 0.1 µm
Linear Travel Range: ± 200 mm
Angular Travel Range: ± 20°
Height in middle position: 640 mm
Payload: 400 kg

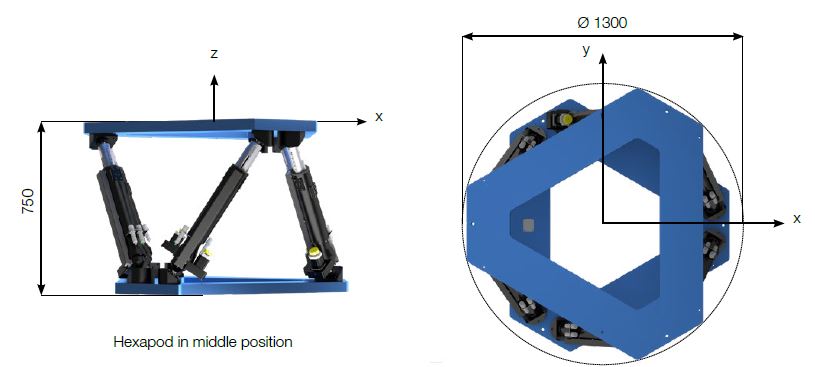

SIRIUS
Robust precision hexapod system

Robust hexapod system capable of positioning up to 1,000 kg with high resolution in the optical, space and aerospace sectors.

Resolution: 5 µm
Linear Travel Range: ± 150 mm
Angular Travel Range: ± 20°
Height in middle position: 750 mm
Payload: 1,000 kg

KUBAN
Heavy-duty hexapod positioner

High-payload hexapod positioner designed for positioning and adjusting components with a resolution of 1.5 µrad.

Resolution: 0.1 µm
Linear Travel Range: ± 25 mm
Angular Travel Range: ± 10°
Height in middle position: 600 mm
Payload: 500 kg

JORAN
High-precision & heavy-load hexapod

High-payload hexapod designed for the positioning and adjustment of components up to 1,500 kg with a resolution of 0.5 µrad.

Resolution: 0.1 µm
Linear Travel Range: ± 65 mm
Angular Travel Range: ± 10°
Height in middle position: 800 mm
Payload: 1,500 kg

SURES
Precision hexapod for astronomy

Precision hexapod for astronomy, capable of positioning objects weighing up to 500 kg, such as mirrors, sub-reflectors, cameras, etc.

Resolution: 0.1 µm
Linear Travel Range: ± 8 mm
Angular Travel Range: ± 1°
Height in middle position: 360 mm
Payload: 500 kg

HEGOA
Compact motion hexapod

With a load capacity of 50 kg, Hegoa is the most compact of our motion hexapods. This Stewart platform is ideal for dynamic applications in industrial settings.

Payload: 50 kg
Linear Travel Range: ± 100 mm
Angular Travel Range: ± 30°
Velocity: ± 200 mm/s
Height in middle position: 42 cm

NOTUS
Mid-sized hexapod

Notus is the ideal mid-sized motion hexapod for applications in research, marine, optronics, aeronautics, chemistry, the automotive industry and medicine.

Payload: 200 kg
Linear Travel Range: ± 250 mm
Angular Travel Range: ± 25°
Velocity: ± 1,200 mm/s
Height in middle position: 1,1 m

MISTRAL
High payload motion hexapods

This large hexapod motion simulator can reproduce trajectories recorded via an IMU from land or sea vehicles, or air thereby enabling the testing of embedded systems, SATCOM antennas, optronic systems, EO/IR sensors, etc

Payload: 1,000 kg
Linear Travel Range: ± 465 mm
Angular Travel Range: ± 30°
Velocity: ± 1,000 mm/s
Height in middle position: 1,4 m

SIROCCO
Hexapod simulator for heavy-load motion

With a load capacity of up to 2 tons and acceleration of up to 6,000 mm/s², this hexapod can be used to study the movement of liquids, set models in motion or simulate a vehicle.

Payload: 2,000 kg
Linear Travel Range: ± 600 mm
Angular Travel Range: ± 40°
Velocity: ± 2,500 mm/s
Height in middle position: 2,8 m

Capable of supporting a load of up to 6 tons, this hexapod can also be combined with a measurement hexapod to monitor the movements of the actuators and the mobile platform.

Payload: 6,000 kg
Linear Travel Range: ± 800 mm
Angular Travel Range: ± 40°
Velocity: ± 2,000 mm/s
Height in middle position: 3,2 m
